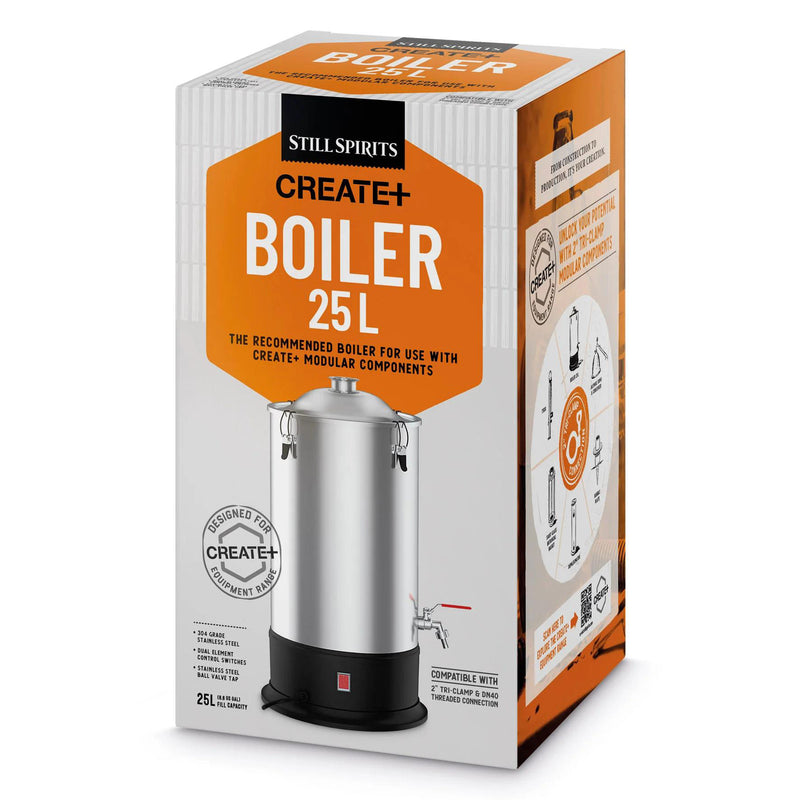

The Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 or T500 Pro Column & Condenser and the Create+ Alembic Copper Dome & Condenser. With a maximum capacity of 25 liters, it’s built for distillers seeking precise control and versatile functionality.

Pair it with the Create+ T500 to produce high-quality, high-ABV neutral alcohol (vodka) or distilled water. Pair it with the Create+ Alembic Copper Dome & Condenser to craft flavorsome spirits (gin, whiskey, rum, bourbon) and aromatic hydrosols, retaining delicate flavors and aroma from your wash or botanicals. The Create+ Boiler 25 L includes a 2" Tri-Clamp to DN40 Threaded Adapter for easy connection to 2" tri-clamp accessories—ideal for experimenting with different setups and attachments.

Smarter power control: Two element switches give you finer control during heat-up and spirit runs. With both switches ON, the element runs at full power of 1600 W. For a gentler boil—especially helpful for dark spirits like whiskey, rum, and bourbon—switch the 500 W control OFF to run at 1100 W.

For safety, the boiler features an automatic reset (boil-dry) switch. A stainless-steel ball-valve tap provides durability and easy draining after distillation.

Elevate your distillation experience with the Create+ Boiler 25 L—designed for flexibility, precision, and consistent results across a range of applications. Whether you’re crafting spirits, distilling water, or producing hydrosols, this boiler offers the control and performance you need.

NOTE: Boiler and condensers/columns are sold separately. Columns/condensers are available in stainless steel and copper.

Key Features

• Dual element control switches for precise power: 1600 W full power; easy reduction to 1100 W.
• Designed in New Zealand.
• Boil-dry reset and thermal cut-out fuse.
• Waste discharge tap with stainless-steel ball valve.
• Boiler lid with 48 mm opening.
• 25 L boiler capacity.
• Connects to 2" tri-clamp distilling accessories (via included 2" Tri-Clamp to DN40 threaded adapter).
• 304-grade stainless steel construction.
• High-temperature-resistant, food-grade silicone gasket.

Specs

• Capacity: 25 L
• Dimensions: H 25.2" × W 14.2" × D 14.6"
• Weight: ~11.95 lb
• Power: 1600 W (120 V US/CA)
• Warranty: 3 years

Compatibility Guidance

The boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-center attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and sturdy for components within the following limits:

• Total column & condenser height up to 3.6 ft (from the boiler lid or dome).
• Total column & condenser weight up to 24 lb, including up to 4.4 lb off-center from a swan neck, lyne arm, or a condenser running parallel with the column and offset up to 6" from the main column.

Included

• Create+ Boiler 25 L
• Create+ Boiler Lid
• 2" Tri-Clamp to DN40 Threaded Adapter (includes silicone gasket and DN40 nut)
• Instructions
