Grainfather G30 220v Version 3 All-in-One All-Grain Brewing System

Sold out
  • Grainfather G30 Versoin 3 - 220v All-in-One All-Grain Brewing System

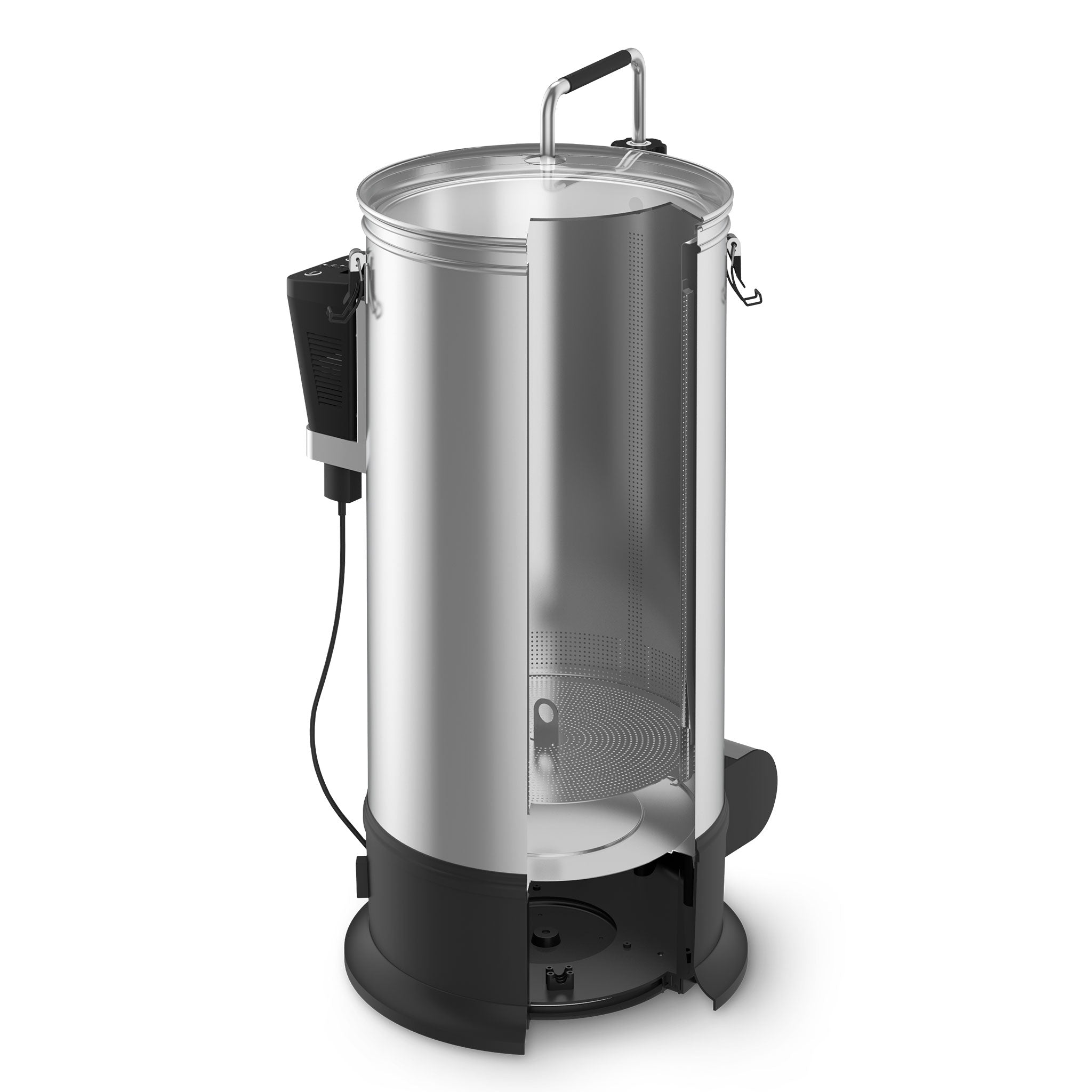

Grainfather G30 Versoin 3 - 220v All-in-One All-Grain Brewing System New G30 cut away side profile New G30 version 3 grain basket top view Perforated Edge Grain Basket G30 version 3 rolled edge plates G30 chiller Grainfather G30 220v All-in-One All-Grain Brewing System Control box

Grainfather G30 220v Version 3 All-in-One All-Grain Brewing System

Sold out

SKU 43376

PRICE AS CONFIGURED:

$999.00

Product Details

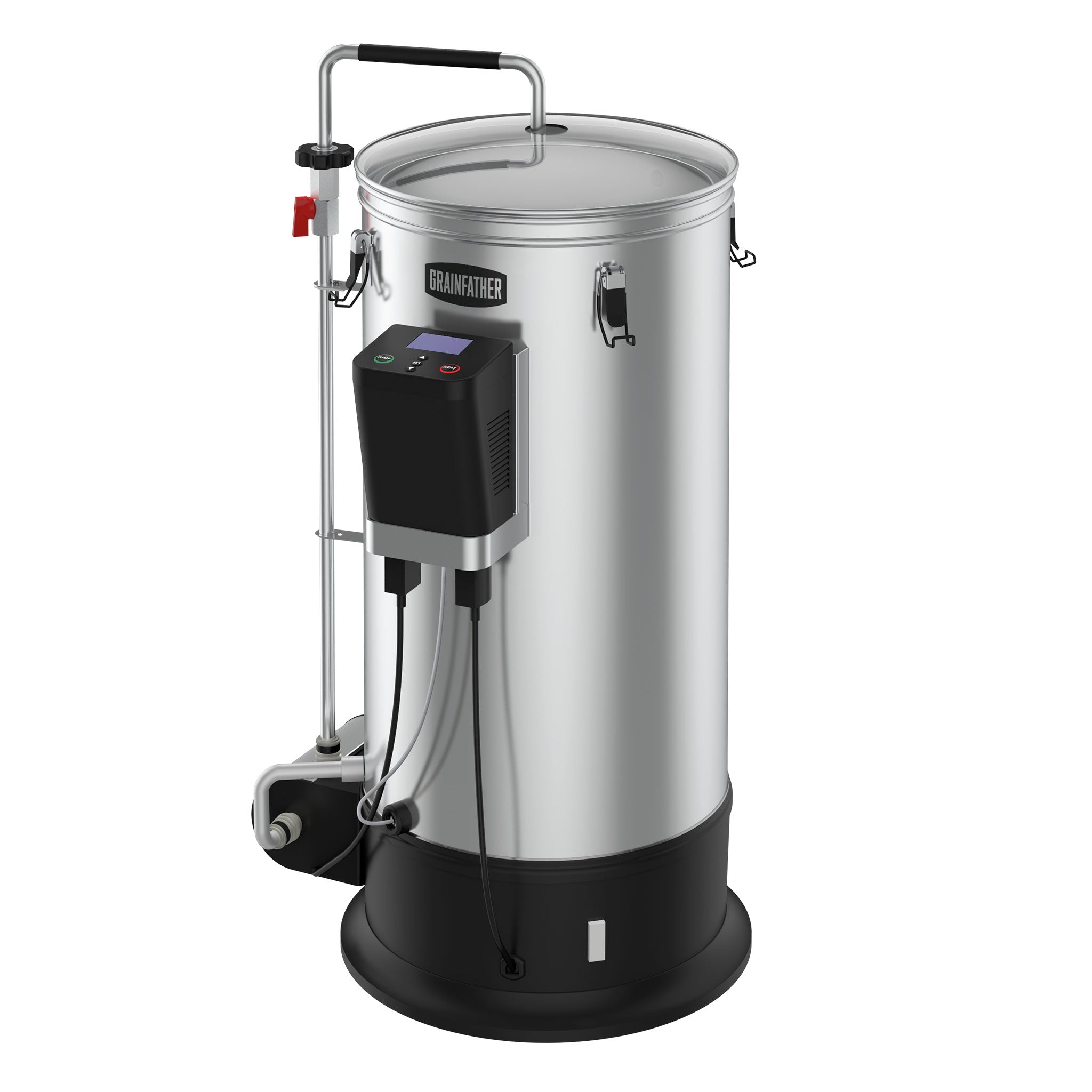

New & Improved Grainfather G30³ 220V

The new and improved Grainfather G30 version 3 220v allows you to mash, sparge, boil, and cool, all in one fully electric, self-contained system. Now includes the Connect Controller. You can take direct control of the Grainfather with your iPhone or Android using Bluetooth. Use the Connect Control Box in conjunction with the Connect App for the ultimate brewing experience.

The Grainfather is an all-in-one All-Grain brewing system designed to declutter your brew cave and put everything you need in one compact package. No need to take your craft outside, with this fully electric system you are safe to brew indoors!

The Grainfather system is the perfect brewing companion for both new and experienced All-Grain brewers looking to streamline the brewday experience.

Manufacturer Instructional Booklet

What's new on the G30 Version 3:

  • Grain Basket Assembly:

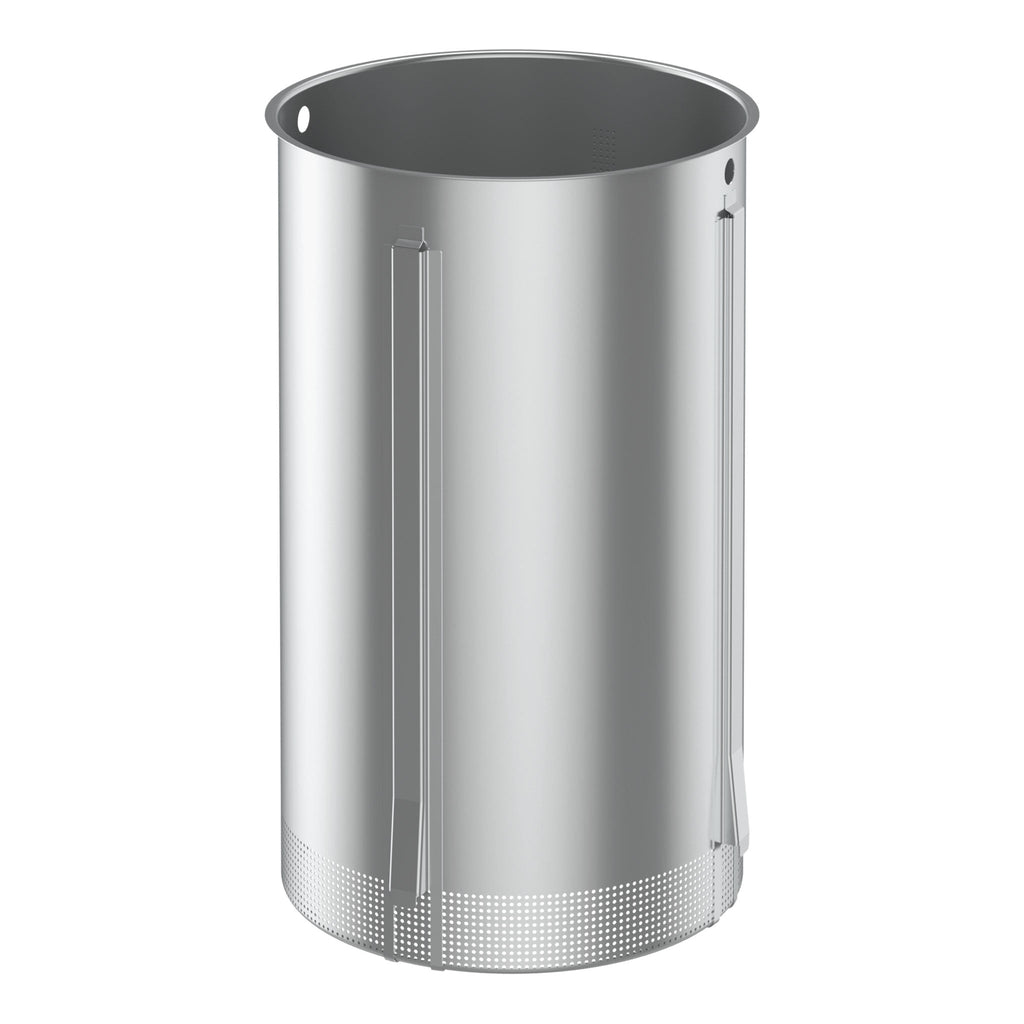

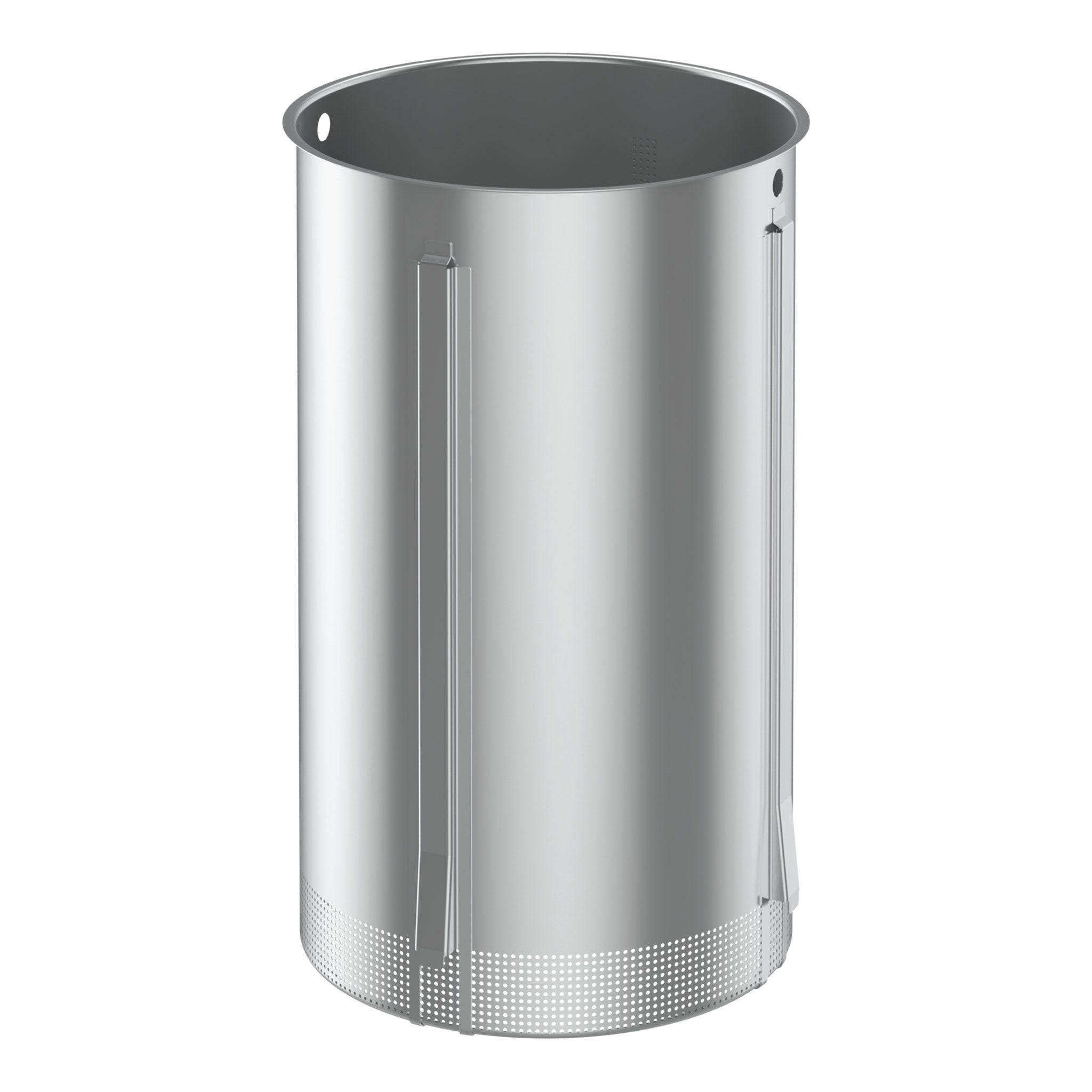

    The newly redesigned Perforated Edge Grain Basket on the G30³ features side wall perforations to improve wort flow and to prevent a stuck mash.

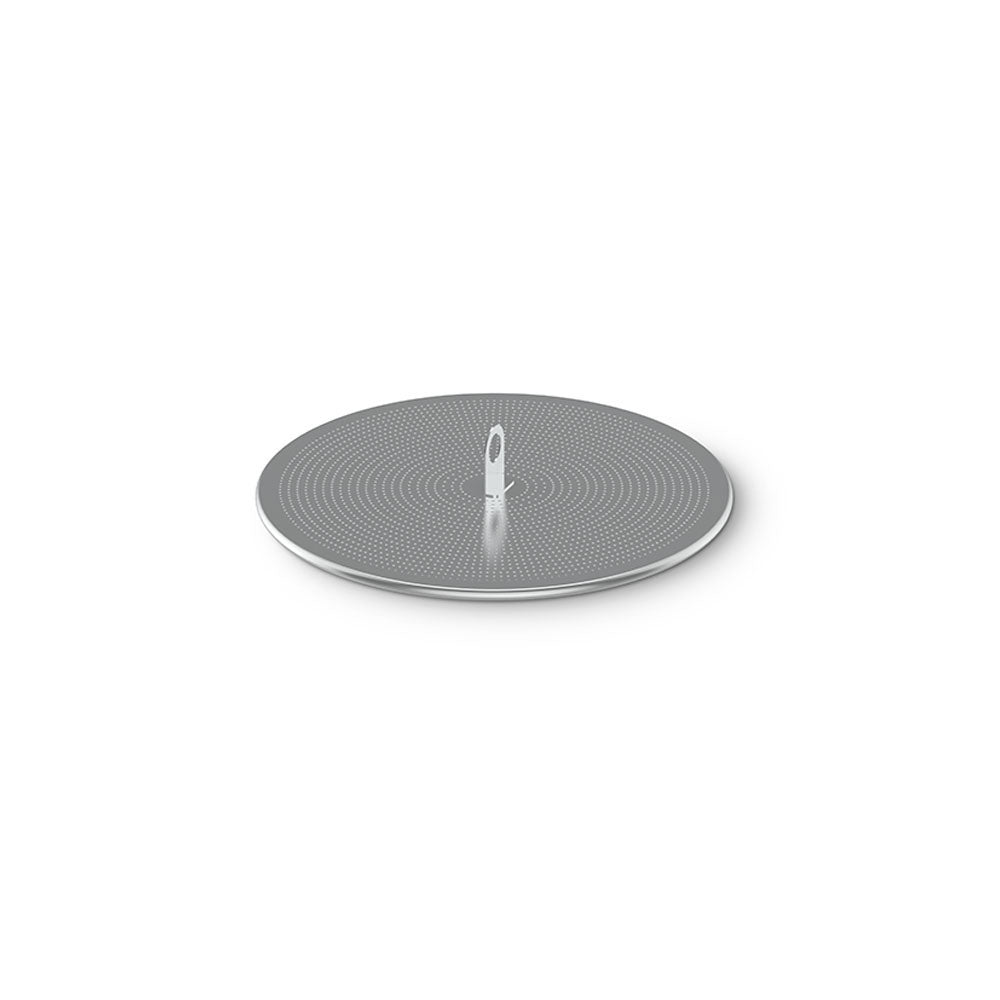

    In addition to the redesigned grain basket, the new Rolled Edge Mash Plate filters the wort efficiently without warping. The new rolled edges mean that there is no need for silicone seals, making the plates much easier to install, remove, and clean.
    The new grain basket and mash plate design means that there is no need for overflow pipework or a top plate, allowing for a hassle-free brew day.
  • Auto Reset Switch:
    Lifting and reaching underneath the boiler to reset your electric homebrewing system is now a thing of the past! The new auto reset switch avoids needing a physical, manual switch to reset the system; ensuring homebrewers can quickly and easily resume their brew day if an unexpected reset is required.

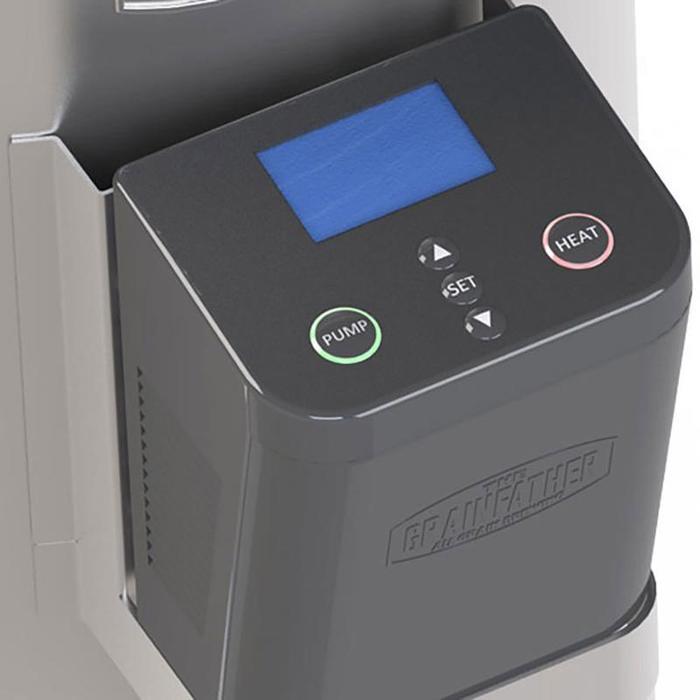

Control box for heat and power control features:

Use the Connect Control Box in conjunction with the Connect App and Grainfather Brewing Community for the ultimate brewing experience. Create your recipes on the Grainfather Brewing Community and then sync these recipes with the Connect app. The control box has a Bluetooth connection to your mobile device so it can be controlled remotely. This allows you to multitask or simply relax while brewing and then be alerted when to return to your next step.

  • PID algorithm works in conjunction with a TRIAC for more stable heating and so you can control power output
  • Programmable step mashing
  • Delayed heating - fill your Grainfather with water the night before and wake up to your water at strike temperature ready for brewing straight away
  • Change between Celsius and Fahrenheit easily
  • Waterproof graphic display
  • Use in manual mode or with app

Grainfather Connect App for Automation Features:

  • Grainfather Grain Kit recipes provided in the app
  • Ability to import recipes (Beer XML files) - NOTE: iOS9 and higher
  • Set your own boil temperature (for different altitudes)
  • Change between Celsius and Fahrenheit easily
  • Grainfather calculators provided in-app
  • Create recipes on the Grainfather Brewing Community and then sync these with the Connect App to brew

Note: Required Specifications for the App are:

  • iPhone/iPad
    • Hardware: iPhone 4S or higher
    • Software: iOS8 or higher. Must have Bluetooth 4.0 or higher
  • Android
    • Hardware: Android 4.3 (API Level 18) or higher
    • Software: Must have Bluetooth Low Energy (LE)/Bluetooth Smart

PLEASE NOTE: All Grainfathers contain a yellow packaging strip in the boiler. This should be discarded before you begin brewing.

Don't have 220v and looking for the Grainfather Version 3 G30 120v?

Additional Information

Support Documents Click here for documents
Support Documents - Instructions Click here for instructions
SKU

43376

NOTE: The Grainfather G30 220v requires 220-240v service with at least a NEMA6-15R or NEMA 6-20R outlet.

Electrical Requirement:

  • Power Requirements:220-240 V
  • Power Supply Outlet Requirements:NEMA 6-15R or NEMA6-20R compatible

Specifications

  • 304 Grade stainless steel body
  • Power Requirements: 220-240 V
  • Power Supply Outlet Requirements: NEMA 6-15R or NEMA6-20R compatible
  • Heating Element: 2000 W
  • 8 US Gal Capacity
  • Expandable grain basket to suit grain bills up to 20 lb
  • A robust magnetic drive pump (6 watt, 1800 RPM)
  • Counter flow wort chiller which can cool wort to less than 68°F within approx 20-30 minutes.
  • Tempered glass lid for maximum durability, heating efficiencies and visibility during your brew day.
  • Clips to easily convert your Grainfather into a home distillery with the Pot Still Attachments.

Pump Features:
A 6 Watt, 1,800 RPM magnetic powered pump has been fitted to recirculate the wort through the grain bed for maximum brewing efficiencies. This is also used during the cooling stage to pump hot wort through the wort chiller. The pump also makes the cleaning process quick and easy by pumping the cleaning detergent through all the pipework. The magnetic drive pump has been selected after rigorous testing of multiple pump styles to ensure it meets the tough demands required of continuous brewing. The pump is concealed by a stainless pump cover, which is easy to pop open, giving you direct access. A pump filter is fitted inside the Grainfather to prevent hops and stray grain from entering the pump or pipework, keeping the wort clear while also preventing any blockages.

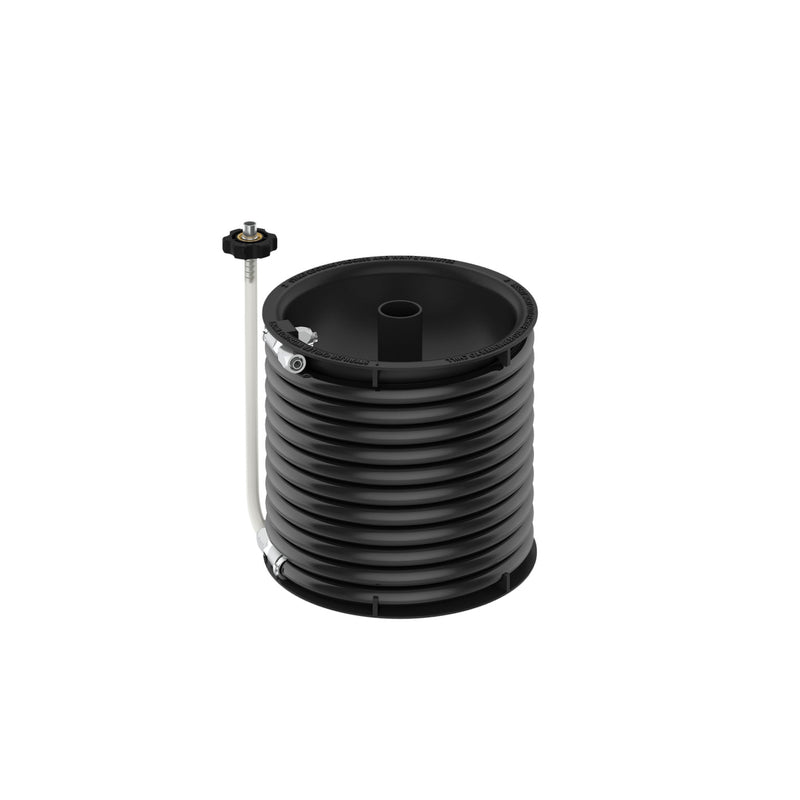

Counter Flow Wort Chiller Features:
A counterflow wort chiller has two connection points. One side is connected to the Grainfather, while the other is connected to the cold tap water. The hot wort is then pumped through the copper inner coil while the cold water is pumped through the outer in the opposite direction, providing instant cooling and heat exchange. The cooled wort can then be pumped directly into your clean, sterile fermenter. This reduces the chance of contamination as nothing is inserted in the wort, and it is only passing through the wort chiller one single time, going straight to the sterile fermenter where the yeast is added. 6 US Gal of wort can be cooled in as little as 20 minutes. The cooled wort temperature will be cooled to approximately 41°F above whatever your tap water temperature is.

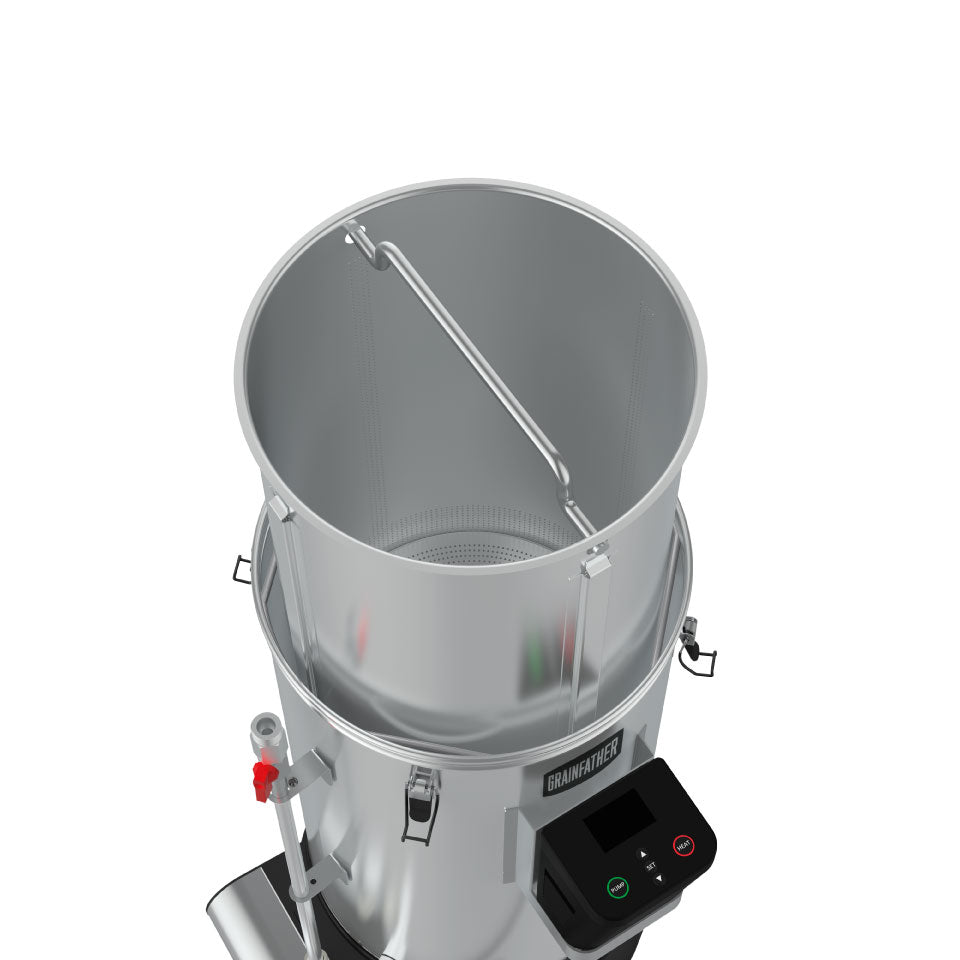

Grain Basket Features:
A stainless steel expandable grain basket allows you to brew with anything from 9.9 lb - 20 lb of grain. When ready for sparging, a basket lifting handle is then inserted into the grain basket to lift it up, out of the wort. A 45-degree turn then allows the grain basket’s feet to rest on the specially designed support ring to allow the grain basket to drain while you can batch sparge over the top. A Sparge Water Heater such as the Gigawort can be purchased additionally to heat your water to the specific temperature required.
