Blichmann Complete Electric HERMS Horizontal Brewing Systems (5 Gal- 1Bbl)

Sold out
  • Blichmann 1 BBL Batch Electric Horizontal Brewing System
Blichmann 1 BBL Batch Electric Horizontal Brewing System controller for horizontal blichmann brewing system

Blichmann Complete Electric HERMS Horizontal Brewing Systems (5 Gal- 1Bbl)

Sold out

SKU 43021



Product Details

Harness the pure, precision brewing power of this best-in-class electric brewing system from Blichmann Engineering, and master advanced all-grain homebrewing like you never have before!

The flagship of the Blichmann Engineering Pro Series, this turnkey system delivers maximum efficiency and consistency, while providing ultimate control over the aspects of all-grain brewing that matter most. Everything you need to handle mashing, boiling, sparging and cooling like a pro, all in one purpose-built system.

Capable of producing up to 1 Bbl of finished beer for the advanced, high-capacity homebrewer to fledgling brewhouse. Complete with wiring instructions and electrical specs required for optimum performance The right electric brewing system is the biggest and best investment you can make in your craft. Don't settle for anything less than Blichmann Engineering.

Due to Extended Supplier delays on certain products. Please allow 2-6 weeks for delivery, as this product ships directly from the manufacturer. BLICHMANN ENGINEERING & ANVIL BREWING ARE EXPERIENCING EXTENDED SUPPLIER DELAYS ON CERTAIN PRODUCTS. Express shipping options not available.

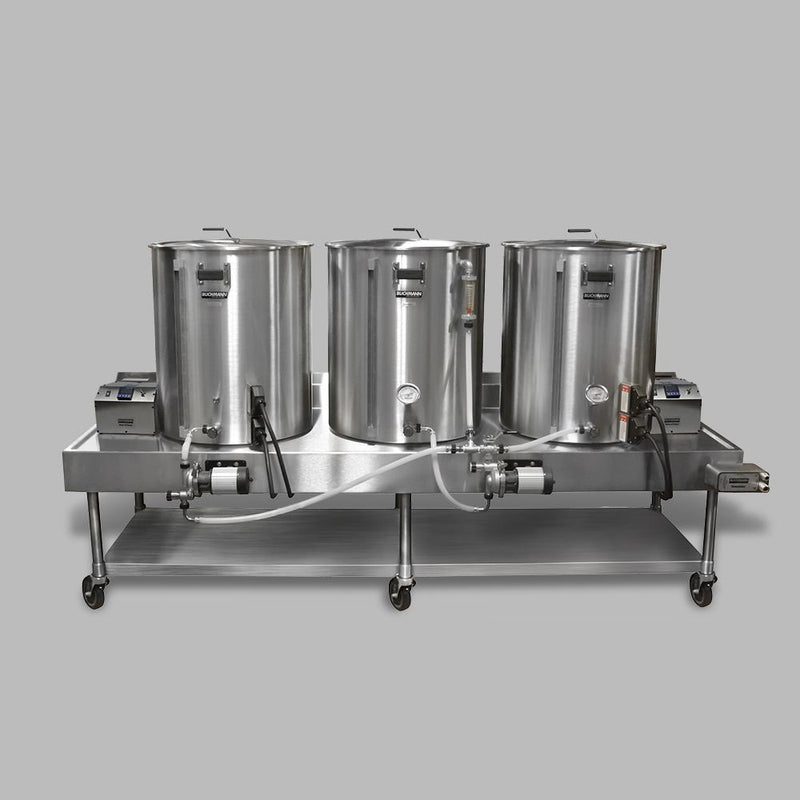

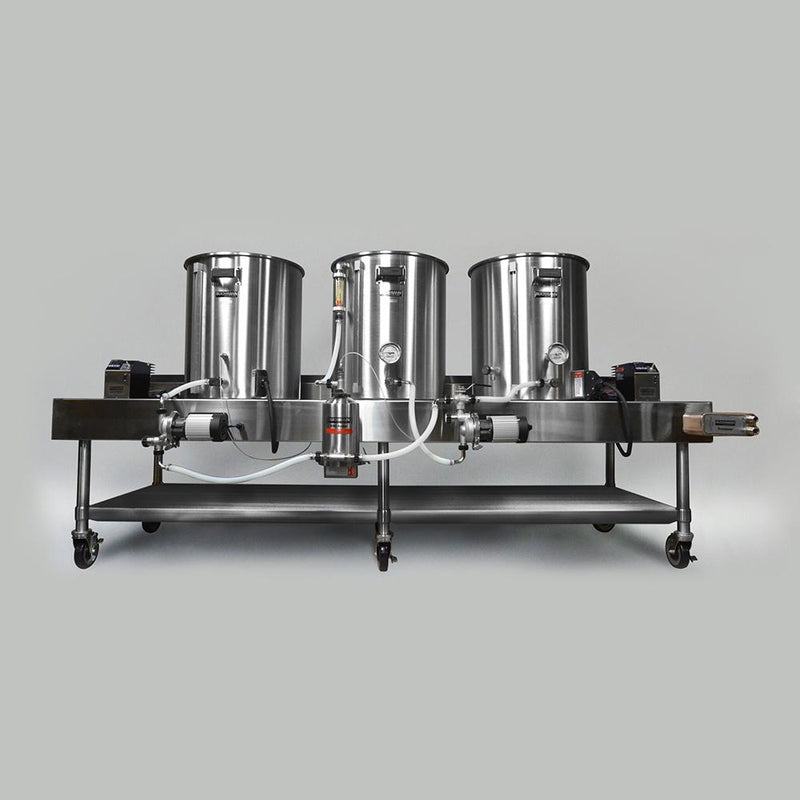

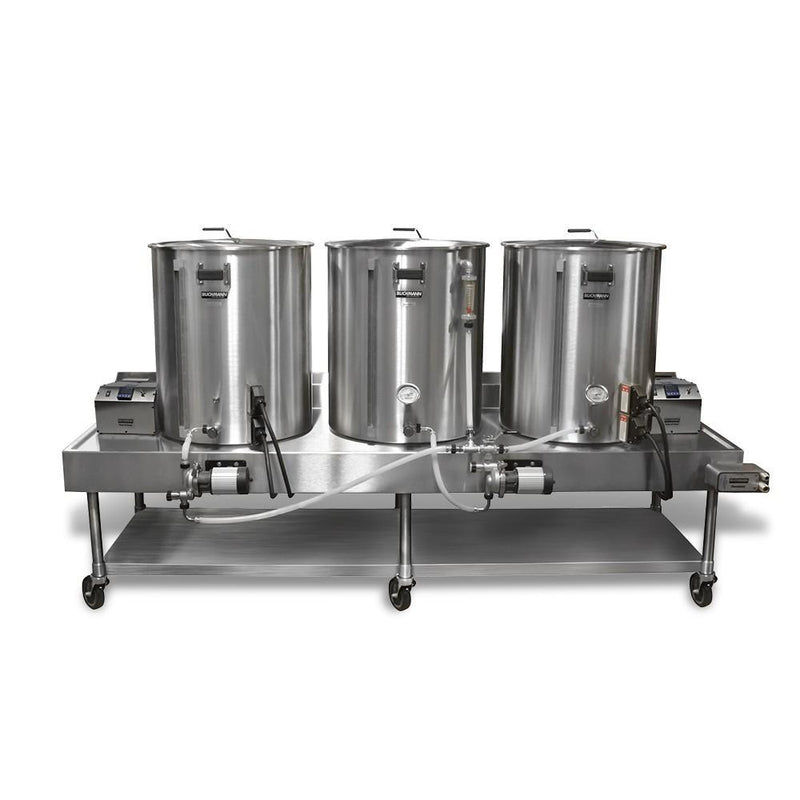

Horizontal brew station engineered for seamless system flow and maximum brew day efficiency.

Features three premium Blichmann Boilermaker kettles

  • Made in the USA
  • Constructed of seamless, heavy-gauge 304 stainless steel
  • Consistent heating, boil quality and boil-off rates guaranteed
  • Includes Linear Flow Valves to allow for precise control and easy cleaning
  • Rivet free handles, rugged cool touch grips, oriented for easy carrying

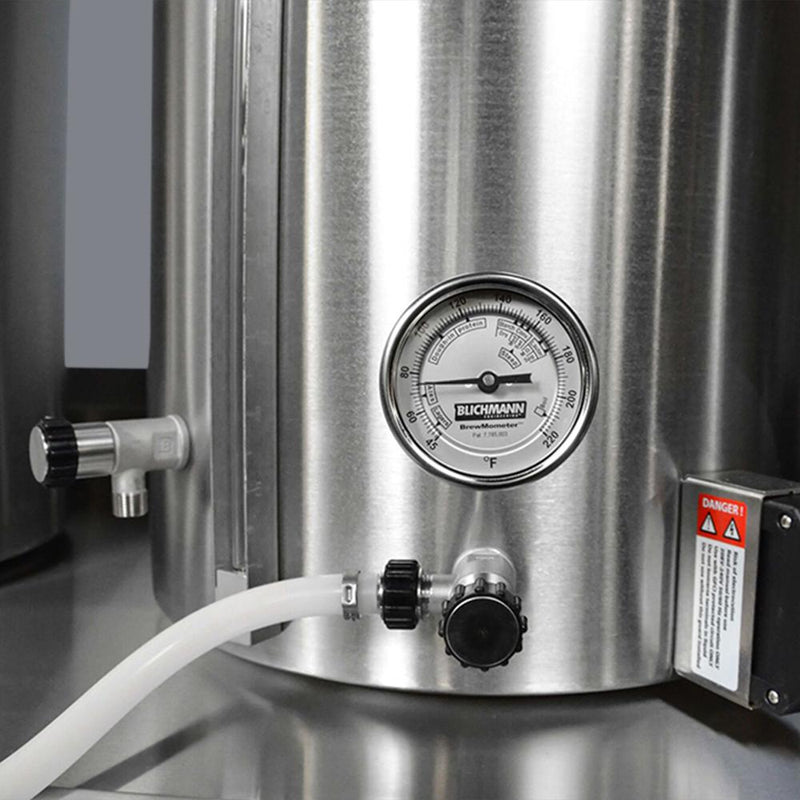

  • Borosilicate glass level gauge
  • Rotating racking arm dip tubes
Flanked by two powerhouse Blichmann RipTide Brewing Pumps
  • Closed-system water and wort transfer
  • Whisper-quiet construction
  • Tri clamp fittings for easy cleaning and connecting/disconnecting
  • Linear Flow Valves
Fully-loaded Mash Tun customized for ultimate brew day control
  • Autosparge for dynamic adjustments and increased extraction efficiency
  • False Bottom features button louver design for max efficiency and plug resistance
  • Temperature sensor port
  • Graduated Level Gauge
Hot Liquor Tank and Boil Kettle each equipped with a 240v BoilCoil heating element
  • Crafted of heavy-duty stainless steel.
  • Ensures consistent temperature control
  • Ultra low-watt density eliminates risk of scorching with proper use.
  • Removable plug for easy cleaning and sanitization.
  • BoilCoils includes a 12-foot cable with a molded twist lock L6-30P plug
  • Boil Kettle also features Whirlpool fittings

Additional Information

Support Documents Click here for documents

43021, 43022, 43023, 43024, 42498

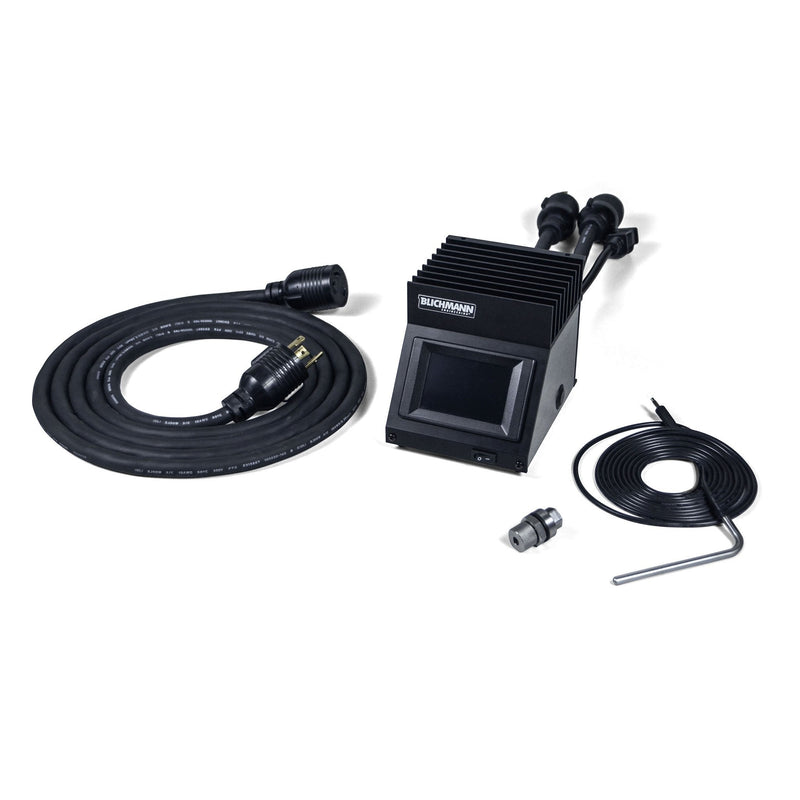

Two 240V BrewCommander Temperature Controllers for digital, push-button consistency
  • PID Temperature Control
  • On/Off/Auto mode selector
  • Class A precision RTD temperature sensor
  • Digital power control to meter the intensity of the heating element from 0-100%
  • Controllers come mounted to the table for ease of use
  • Compact, brushed stainless enclosure
  • UL listed NEMA-4
  • GFCI main disconnect breaker
  • Supply power required: 150A at 240V, 175A at 208V, single phase.
  • Individual 30A heater breakers
  • PID temperature control for HLT and boil kettle
  • Digital power control to meter the intensity of the heating element from 0-100%
  • On/off/auto mode selector switches for temperature control
  • Three RTD temperature sensors
  • 1 Bbl System includes Tower of Power Dual Temperature Control System

Therminator Wort Chiller

Heavy Duty Custom Brew Station Table

  • 14 gauge 304 stainless steel construction
  • Made in the USA
  • Drip ledge to keep your floor clean
  • Built-in junction boxes
  • Heavy duty caster make it easy to move around
  • Lower shelf storage
  • 96"x30" Brewing Table
  • 24" Height for ergonomic access to kettles

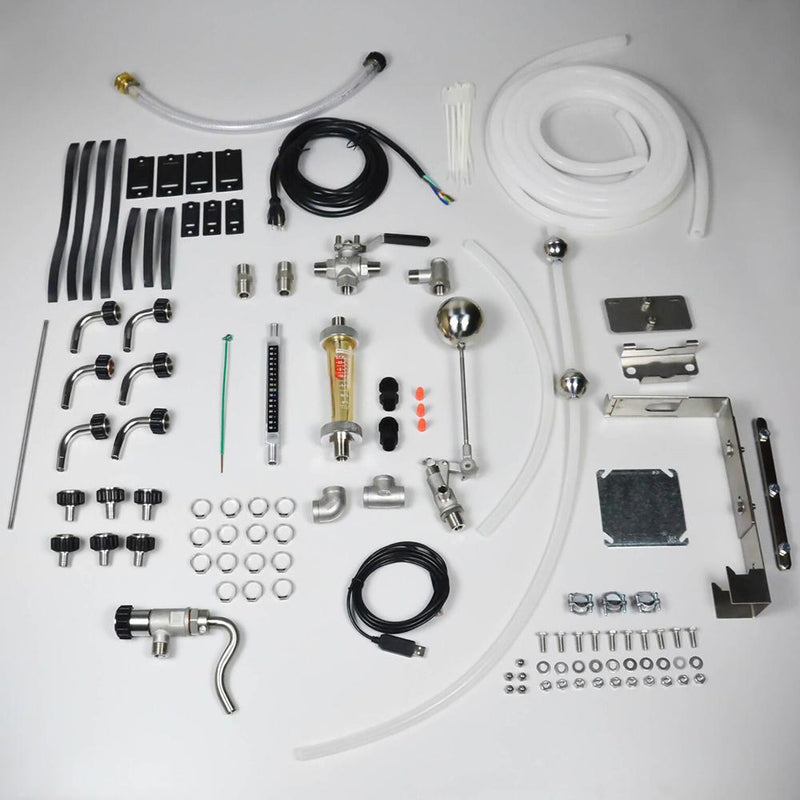

Hoses and fittings customizable to fit any layout.

IMPORTANT: Mandatory Electrical Requirements

  • Two 240v 30 Amp GFCI L630R outlets
  • One 120v 15 Amp GFCI outlet

To avoid the 15% restocking fee on returns and ensure your system operates safely, Northern Brewer recommends reviewing your current electrical capacity prior to purchase and working with a licensed electrician to install the 240V outlets required.
